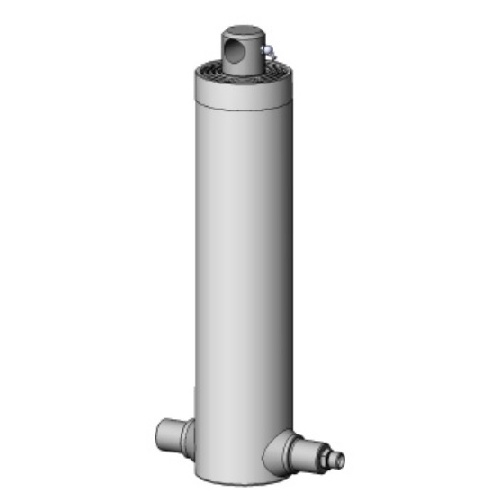

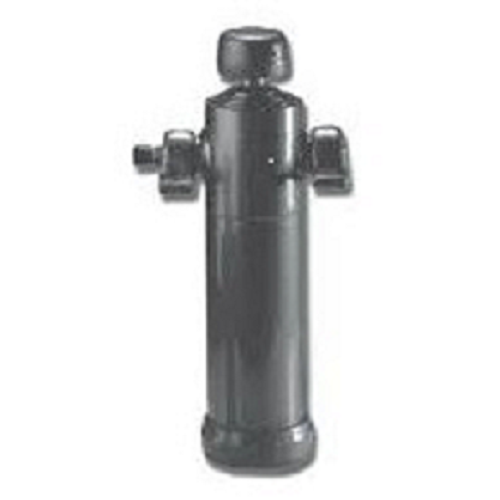

DNB6003S - MID MOUNT HOIST for Ute or Small Trailer - 6 Stage, 1005mm Stroke, 124mm Diameter

UNDERBODY CYLINDER for Ute / Small Trailer

MAKE: Dinatale-Bertelli

TYPE: Under Body Cylinder

MODEL: DNB6003S

DETAILS:  124mm Diameter, 6 Stages, 1005mm Stroke

PIVOT CENTRE FOR 50°:  1190mm

TIPPING CAPACITY:  Nom:  4 / Max:  6.5  @ 170 Bar

Closed Height including 20mm pullout: 355mm

WEIGHT:  26kgs

OIL VOLUME: 4.5 Litres

·         Premium “Italian” manufactured cylinders

·         Stages machined from seamless hot rolled tubes

·         Very large overlap – double bottom guides

·         Higher max working pressure of 200 Bar

·         Chromed piston rod as standard

·         Pressure and double lip wiper seals in plyurethane

·         High quality finish pn the OD of all tubes

·         Swivel oil Inlet

·         Weldable cup

·         Port hole at 90degrees from the front directly out of the trunnion

Warranty:  12 month manufacturers subject to approval

FURTHER INFORMATION

Truck and Trailer Parts stock and can source Hydraulic Cylinder / Tipping Hoists and seal kits for most applications. Our range of tipping hoists consists of the following:

· Suitable for Tipper Bodies, Dog Trailers, Semi Trailers, B Doubles

· Available in Well Mount (Underbody) and Front Mount

· Many different stroke sizes to ensure ideal tipping angle of 48 degrees

· Standard and Raised Trunion available

· Comes complete with feet and clevis
