Tipper 35mm side swing tailgate kit complete Truck Trailer

Truck Trailer Body Hardware 35mm Side Swing Tailgate Kit



TYPE:  35mm Side Swing Tailgate Kit

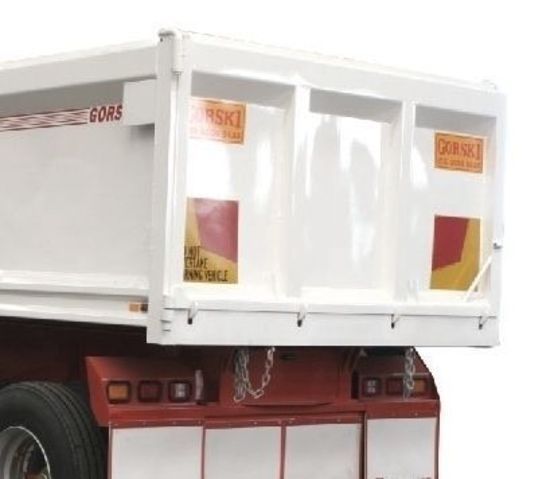

APPLICATION:  convert single acting tailgate truck body door into two (2) way tailgates.  It is best used for Steel Tipper Bodies.

Part Number:     BOD004A

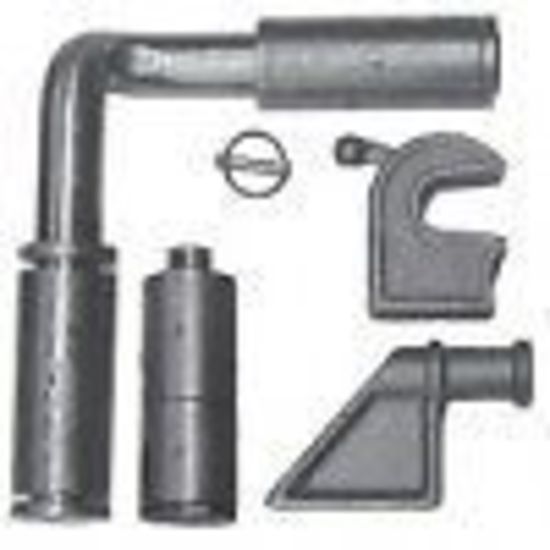

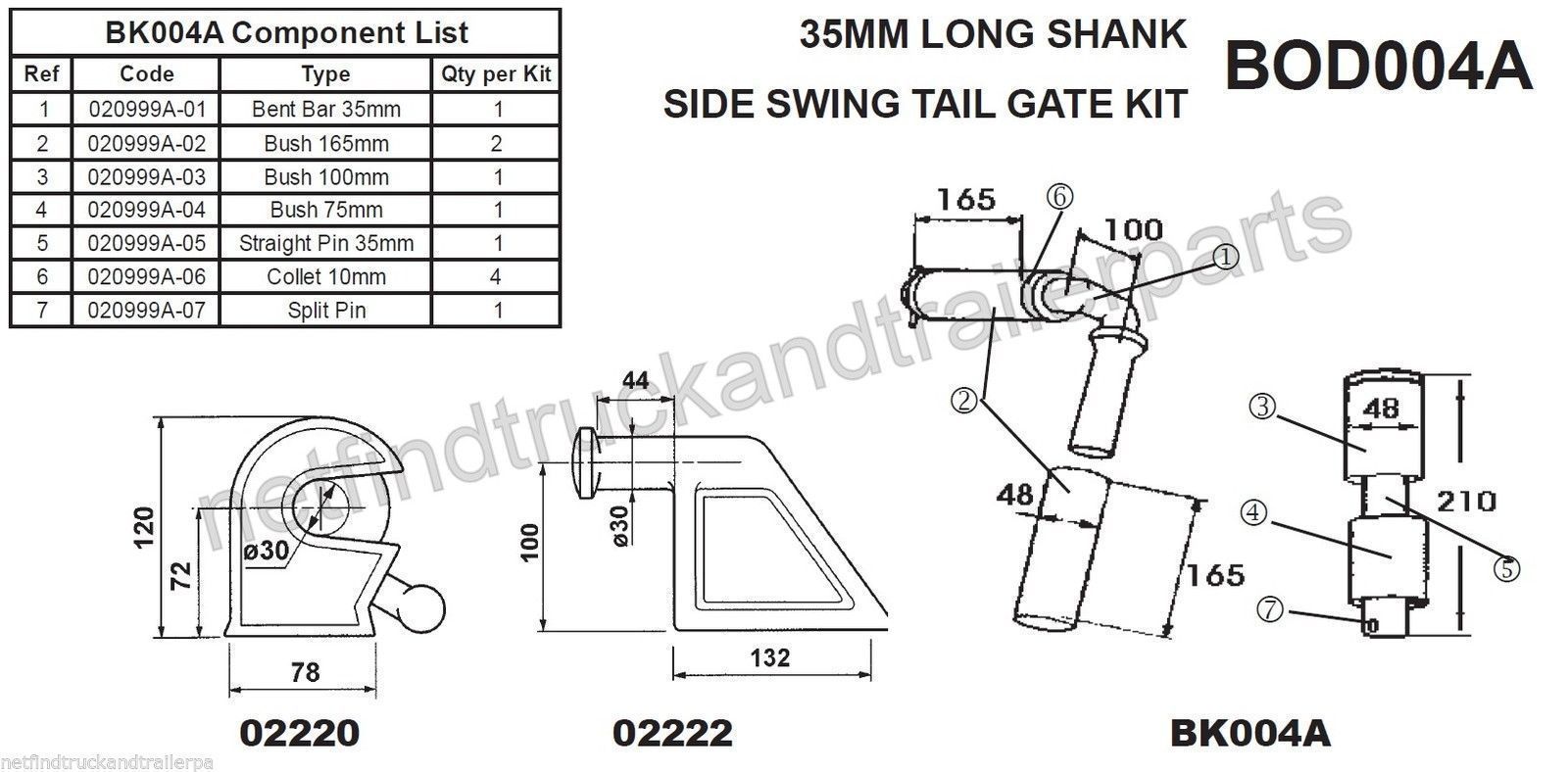

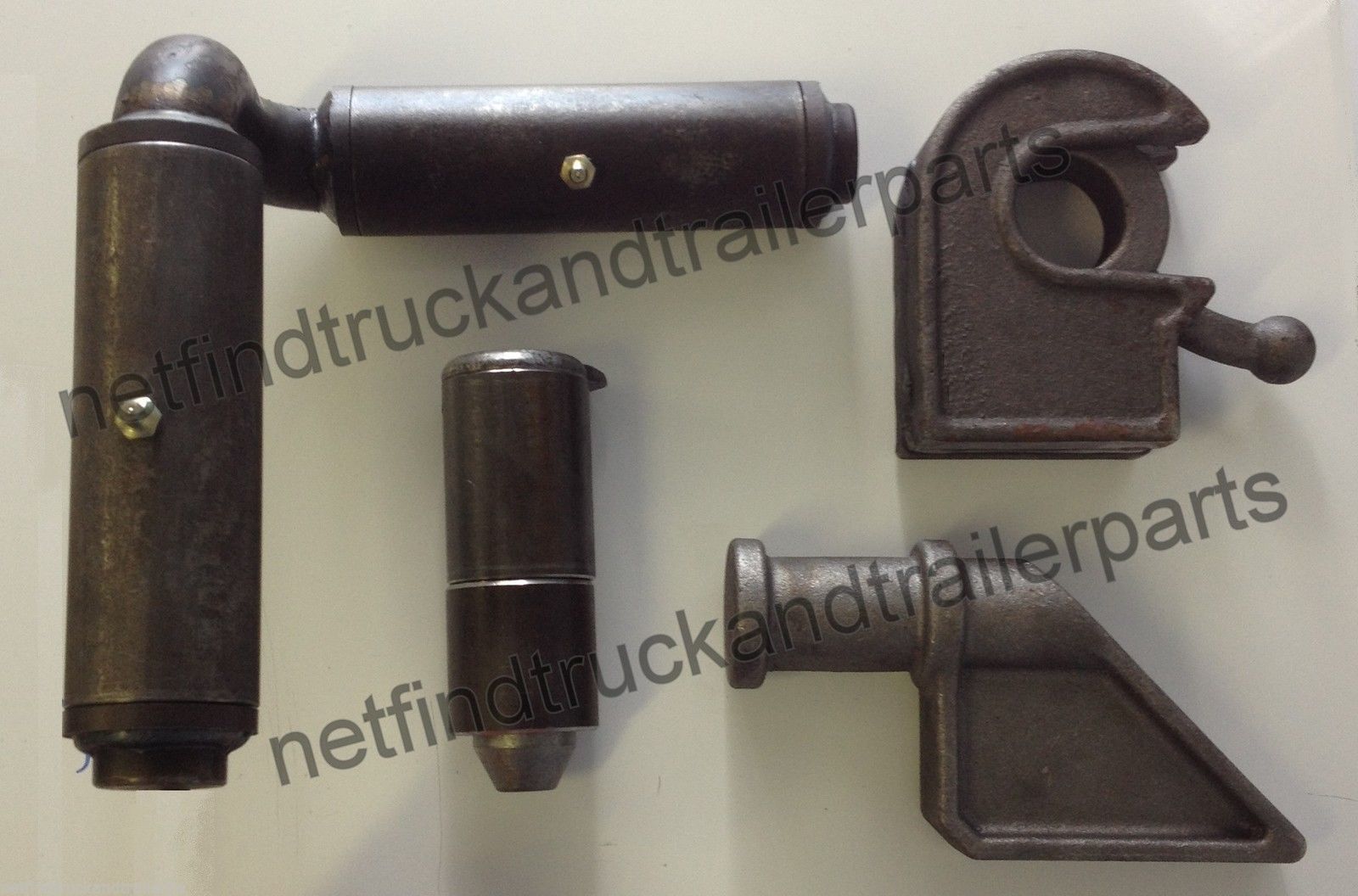

The Kit is made up of the following components:

Ref 1:  1 x Bent Bar 1.4" (35mm) thick 90deg Swing Elbow

Ref 2:  2 x Long Bush 6.5" (165mm) long x 1.4" I/D (35mm) x 1.88" (48mm) O/D

Ref 3:  1 x Medium Bush 4.0” (100mm) long x 1.4" I/D (35mm) x 1.88" (48mm) O/D

Ref 4:  1 x Small Bush 2.9" (75mm) long x 1.4" I/D (35mm) x 1.88" (48mm) O/D

Ref 5:  1 x Straight Pin 8.2” (210mm) long x 1.4" (35mm) O/D

Ref 6:  4 x Collet/Collar 1.4" I/D (35mm) x 3/8" (10mm) thick

Ref 7:  1 x Split Pin

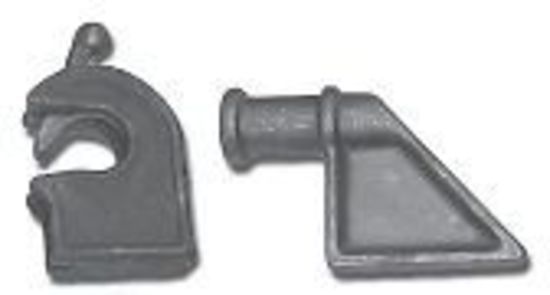

02220:  1 x Catch (Horse Head) 30mm

02222:  1 x Raised Hinge 30mm



Additional Extras:

35mm Side Swing Tailgate Kit for Aluminium Tipping Bodies will be available soon.
