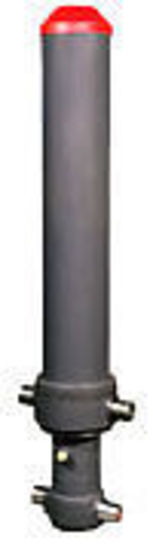

Tipping Tipper Hoist "Front Mount" Hydraulic Cylinder 135-4-5320H
More infoMake 4 interest-free payments of $1,155.58 fortnightly and receive your order now.
In StockTruck Trailer TIPPING HOIST – Front Mount
MAKE: Hidromas
TYPE: Front Mount
MODEL: 135-4-5320H
DETAILS: 135mm diameter of first stage, 4 Stages, 4780mm Stroke
PIVOT CENTRE FOR 48°: 6600mm
TIPPING CAPACITY: 24T

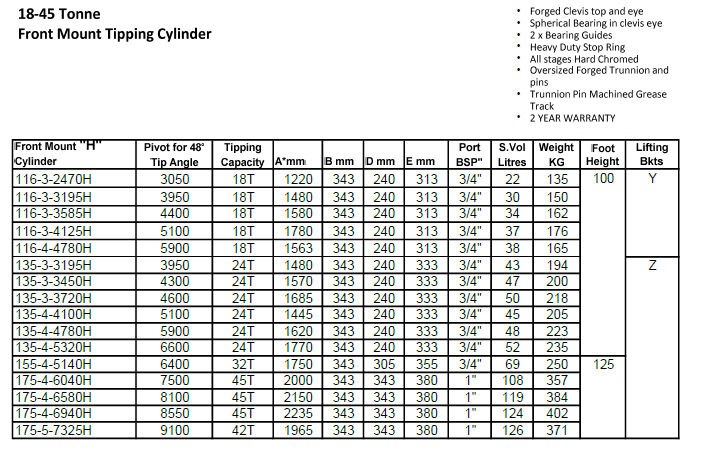

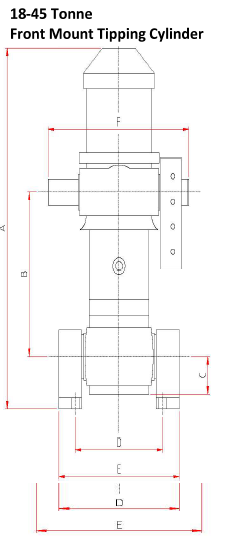

Dimensions as per attached photo/drawing are:
A. Closed Height including 30mm pullout: 1770mm
C. Centre of bottom trunnion pin to bottom of hoist: 343mm
D. Centre to centre of feet bolt holes: 240mm
E. Maximum width of foot print: 333mm
PORT BSP: ¾”
SWEPT VOLUME: 52 Litres
FOOT HEIGHT: 1 pair x 100mm

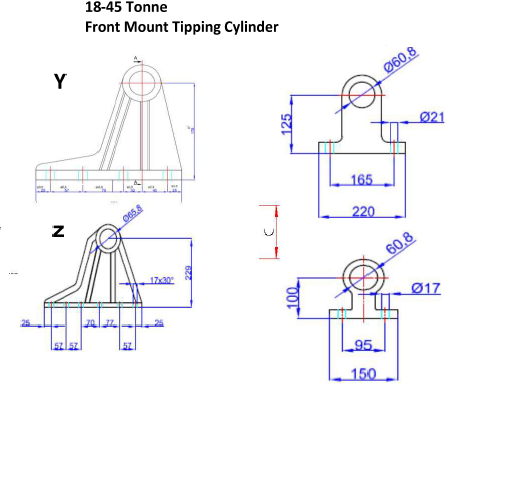

Lifting Brackets: Z
(JOT-135-4-5320H)
| SKU | JOT-135-4-5320H |
| Brand | Hidromas |
| Shipping Weight | 255.0000kg |
| Shipping Width | 0.600m |
| Shipping Height | 1.100m |
| Shipping Length | 0.500m |
| Shipping Cubic | 0.330000000m3 |
| Unit Of Measure | ea |
