Tipping Tipper Hoist "Underbody" Well Mount Hydraulic Cylinder 135-3-3195C
More infoMake 4 interest-free payments of $621.68 fortnightly and receive your order now.
In StockTruck Trailer TIPPING HOIST – Well Mount
MAKE: Hidromas
TYPE: Well Mount “Underbody”
MODEL: 135-3-3195C
DETAILS: 135mm diameter of first stage, 3 Stages, 3195mm Stroke
PIVOT CENTRE FOR 48°: 3950mm
TIPPING CAPACITY: 24T
BARREL DIMENSION: 156mm

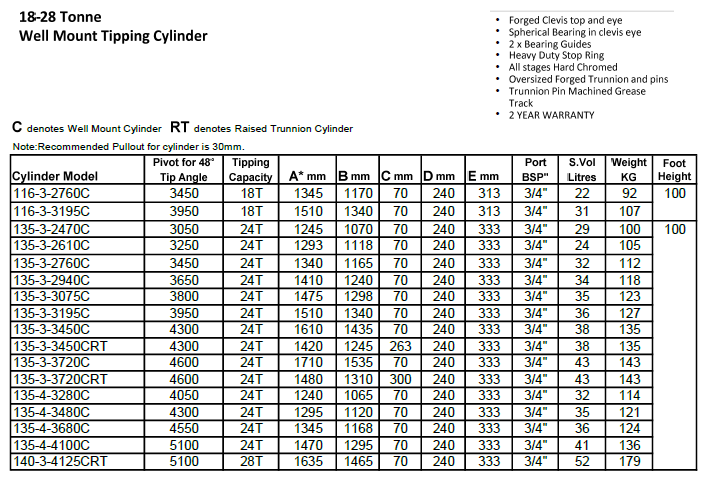

Dimensions as per attached photo/drawing are:
A. Closed Height including 30mm pullout: 1510mm
B. Centre of bottom trunnion pin to centre of top clevis pin: 1340mm
C. Centre of bottom trunnion pin to bottom of hoist: 70mm
D. Centre to centre of feet bolt holes: 240mm
E. Maximum width of foot print: 333mm
PORT BSP: ¾”
SWEPT VOLUME: 36 Litres
FOOT HEIGHT: 1 pair x 100mm
CLEVIS: 1
(JOT-135-3-3195C)
| SKU | JOT-135-3-3195C |
| Brand | Hidromas |
| Shipping Weight | 147.0000kg |
| Shipping Width | 0.600m |
| Shipping Height | 1.100m |
| Shipping Length | 0.500m |
| Shipping Cubic | 0.330000000m3 |
| Unit Of Measure | ea |
