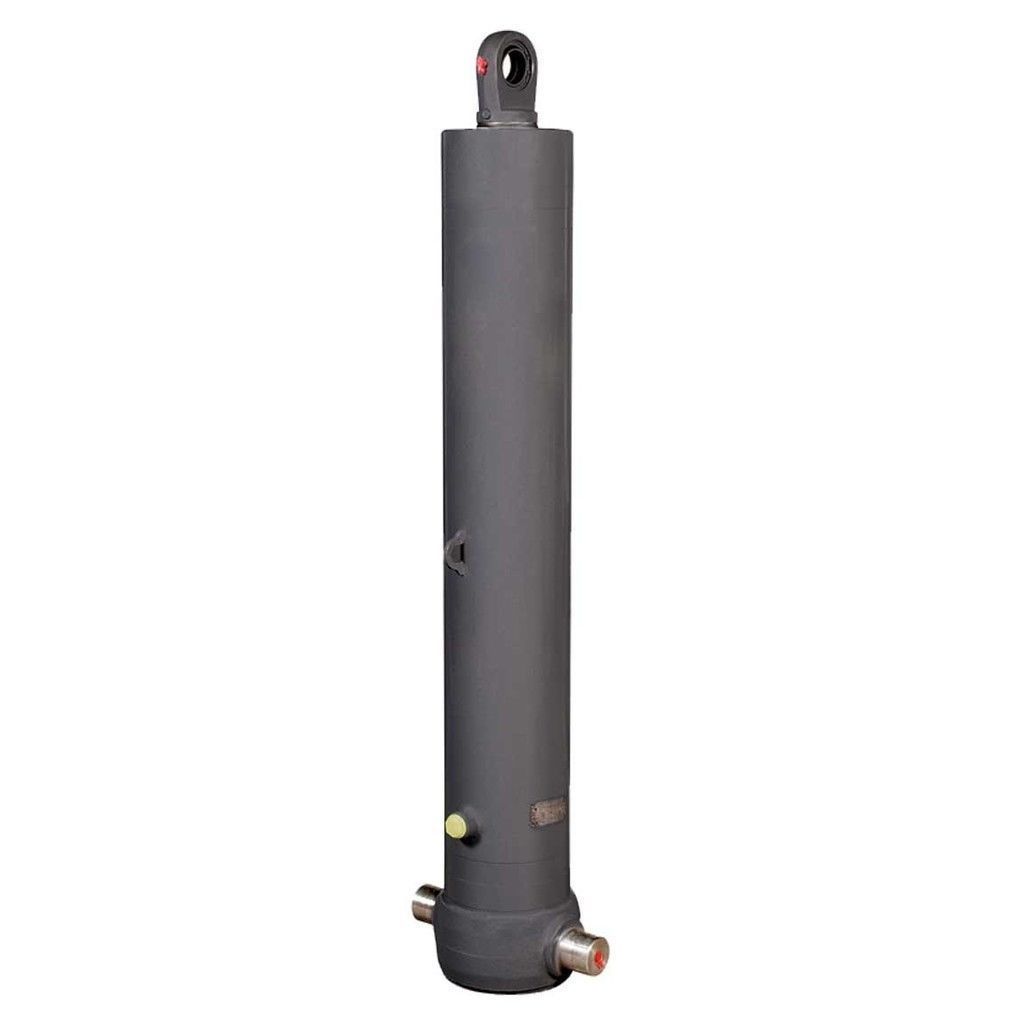

Tipping Tipper Hoist "Underbody" Well Mount Hydraulic Cylinder 155-4-4600C
More infoMake 4 interest-free payments of $900.61 fortnightly and receive your order now.
In StockTruck Trailer TIPPING HOIST – Well Mount
MAKE: Hidromas
TYPE: Well Mount “Underbody”
MODEL: 155-4-4600C
DETAILS: 155mm diameter of first stage, 4 Stages, 4600mm Stroke
PIVOT CENTRE FOR 48°: 5700mm
TIPPING CAPACITY: 32T
BARREL DIMENSION: 175mm
Dimensions as per attached photo/drawing are:
A. Closed Height including 30mm pullout: 1640mm
B. Centre of bottom trunnion pin to centre of top clevis pin: 1430mm
C. Centre of bottom trunnion pin to bottom of hoist: 80mm
D. Centre to centre of feet bolt holes: 305mm
E. Maximum width of foot print: 355mm
PORT BSP: ¾”
SWEPT VOLUME: 62 Litres
FOOT HEIGHT: 1 pair x 125mm
CLEVIS: 2
(JOT-155-4-4600C)
| SKU | JOT-155-4-4600C |
| Brand | Hidromas |
| Shipping Weight | 204.0000kg |
| Shipping Width | 0.600m |
| Shipping Height | 1.100m |
| Shipping Length | 0.500m |
| Shipping Cubic | 0.330000000m3 |
| Unit Of Measure | ea |
