Tow bar to suit Auto Pin Coupling 40/50mm 15,000kg includes bolt kit BT1300A-15T

Towbar to suit Auto Pin Coupling (Ringfeder) 50mm BT1300A-15T including bolt kit

MODEL:  BT1300A-15T
DETAILS:  Towbar for Auto Pin Coupling (Ringfeder) to suit Heavy Duty Trucks to 15,000kg
APPLICATION: Medium Rigid Truck
COUPLING:  50mm Auto Pin Coupling only
MAXIMUM ATM:  15,000kg ATM
MAX SVL: 2,500
D-VALUE: 108kN
MASS: 145kg
CHASSIS MOUNT:  Outside
INCLUDED:  Towbar, bolt kits, mounting instructions, compliance plate once complete.  50mm Ringfeder sold separately.

INSTALLATION: Drilling and bolting required for truck chassis and side plates. Welding required for fixing crossmember, gussets and accessory components.

Comprehensive installation Instructions are provided to assist with ADR62 assurance and VSB6 compliance. Some applications require customised sideplates - consult with Bartlett if unsure.

COMPLIANCE: Products are designed, tested, and rated to meet Australian Design Rule 62 (ADR62) and other Australian Standards. Australian compliance may not be transferable to other international jurisdictions. Exporters should carefully check compliance applicability prior to specifying or exporting these products.

RATINGS: Ratings stated are maximum potential ratings and may be limited by many factors. Refer to EQUIPMENT RATINGS CAUTION at the start of each section in this catalogue for further details.

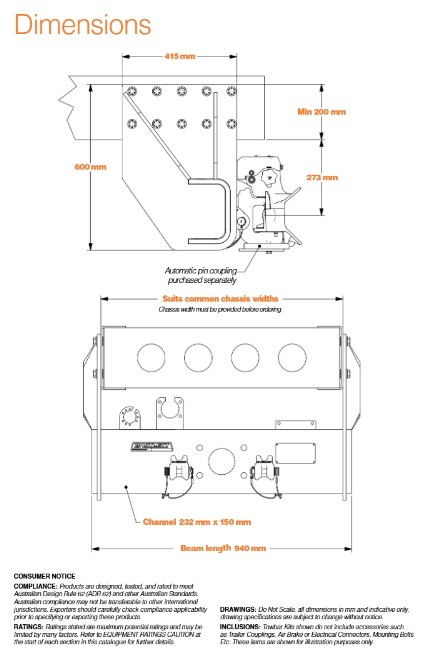

DRAWINGS: Do Not Scale, all dimensions in mmand indicative only, drawing specifications are subject to change without notice.

INCLUSIONS: Towbar Kits shown do not include accessories such Trailer Couplings, Air Brake or Electrical connectors. These are shown for illustration purposes only.

ADDITIONAL EXTRAS:

We can also supply Bartlett Ball, Pintle Hook, Ringfeder and Rockinger tow couplings, as well as electric, hydraulic and air brake trailer couplings.

Our range consists of the following:
