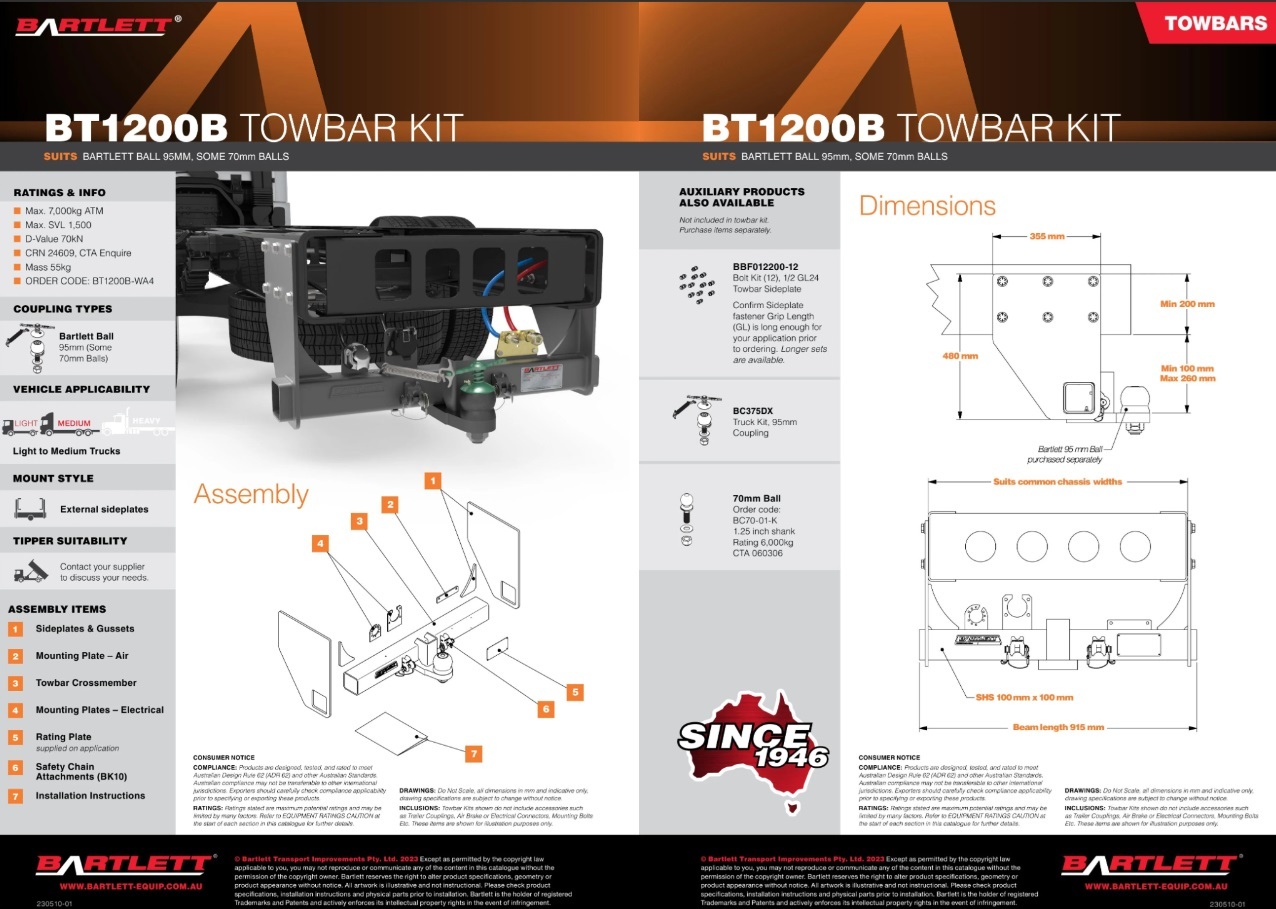

Tow bar to suit Bartlett Ball 95mm to 7,000kg including Bolt Kits BT1200B-7T Truck Trailer

Towbar to suit Bartlett Ball 95mm BT1200B-7T Including Bolt Kits

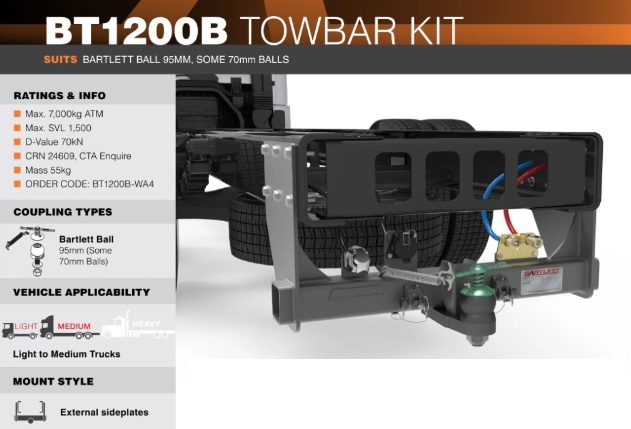

MODEL:  BT1200B-7

DETAILS:  Towbar for 95mm Bartlett Ball to suit Medium Trucks to 7,000kg

VEHICLE APPLICATION: Medium Truck

COUPLING:  95mm Bartlett Ball only

MAXIMUM ATM:  7,000kg ATM

MAXIMUM SVL:  1,500
D-VALUE:  70kN
CRN: 24609

UPGRADEABLE:  no

CHASSIS MOUNT:  outside

WEIGHT:  55kg

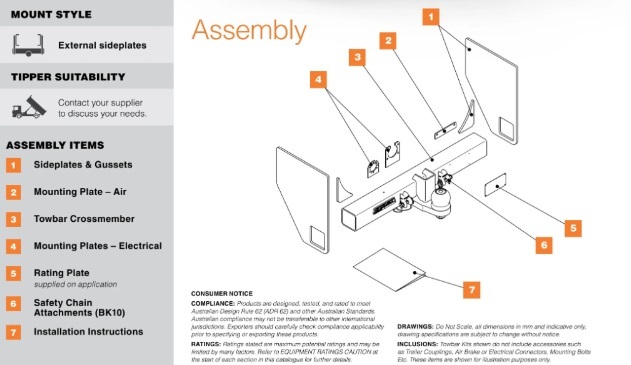

INCLUDED:  Towbar, bolt kit, mounting instructions, compliance plate once complete.  95mm Bartlett Ball sold separately.





INSTALLATION: Drilling and bolting required for truck chassis and sideplates. Welding required for fixing crossmember, gussets and accessory components.

Comprehensive installation Instructions are provided to assist with ADR62 assurance and VSB6 compliance. Some applications require customised sideplates - consult with Bartlett if unsure.



COMPLIANCE: Products are designed, tested, and rated to meet Australian Design Rule 62 (ADR62) and other Australian Standards. Australian compliance may not be transferable to other international jurisdictions. Exporters should carefully check compliance applicability prior to specifying or exporting these products.

RATINGS: Ratings stated are maximum potential ratings and may be limited by many factors. Refer to EQUIPMENT RATINGS CAUTION at the start of each section in this catalogue for further details.

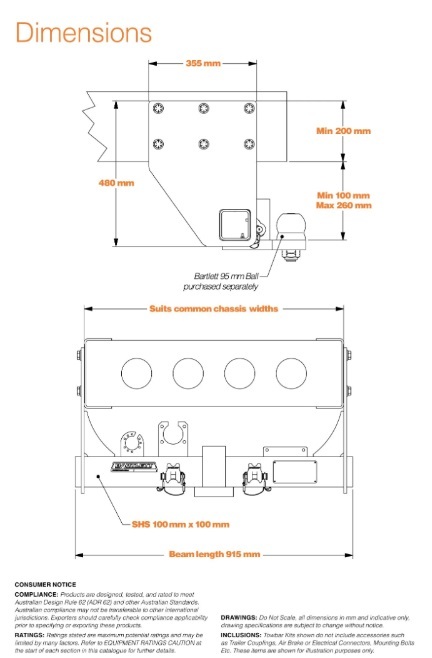

DRAWINGS: Do Not Scale, all dimensions in mmand indicative only, drawing specifications are subject to change without notice.

INCLUSIONS: Towbar Kits shown do not include accessories such Trailer Couplings, Air Brake or Electrical connectors. These are shown for illustration purposes only.



ADDITIONAL EXTRAS:

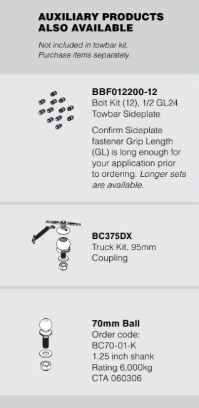

We can also supply Bartlett Ball, Pintle Hook, Ringfeder and Rockinger tow couplings, as well as electric, hydraulic and air brake trailer couplings.



ADDITIONAL EXTRAS:

We can also supply Bartlett Ball, Pintle Hook, Ringfeder and Rockinger tow couplings, as well as electric, hydraulic and air brake trailer couplings.





FURTHER INFORMATION





We have Tow Bars from 3500kg ATM to 30,000kg ATM to suit 50mm Ball, Pintle Hooks, Bartlett Ball and Automatic Couplings like Ringfeder.  The Tow Bars come with installation instructions and compliance tag once installation has been completed by relevant tradesperson.

Some of the features include:

·         Save time and installation costs

·         Cost effective

·         Simplified Compliance

·         Manufactured by Industry specialists











TOW BAR - 50mm Ball & Pintle Hooks
Part #:	To suit coupling:	Application	Max ATM (kg):	Chassis Mount
BT350-3.5T	50mm Ball	Light/Medium Truck	3500	OUTSIDE
BT1250H-7T	Light Pintle hook + Receiver ball and mount for 50mm ball	Light/Medium Truck	7000kg Pintle / 3500kg Ball	OUTSIDE
BT1200H-7T	Light Pintle Hooks	Small/Medium Truck	7000	OUTSIDE
BT1300H-15T	Medium Pintle Hooks	Medium/Heavy Truck	15000	OUTSIDE
BT1400H-21.5T	Heavy Duty Pintle Hook - 6 Bolt (PH300)	Heavy Rigid Trucks	21500	OUTSIDE
BT1400H-30T			30000	OUTSIDE
TOW BAR - Bartlett Ball
Part #:	To suit coupling:	Application	Max ATM (kg):	Chassis Mount
BT1200B-7T	Bartlett 95 mm Ball	Medium Truck	7000	OUTSIDE
BT1300B-13T	Bartlett 127mm Ball	Medium/Heavy Truck	13000	OUTSIDE
BT1400B-21.5T	Bartlett 127mm Ball	Heavy Rigid Trucks	21500	OUTSIDE
BT1400B-30T			30000	OUTSIDE
BT1700B-21.5T	Barttlett 127mm Ball	Heavy Truck	21500	INSIDE
BT1700B-30T			30000	INSIDE
TOW BAR - Automatic Pin
Part #:	To suit coupling:	Application	Max ATM (kg):	Chassis Mount
BT1300A-17T	Automatic Pin and some Pintle Hooks	Medium/Heavy Truck	17000	OUTSIDE
BT1400A-21.5T	Automatic Pin	Heavy Rigid Trucks	21500	OUTSIDE
BT1400A-30T			30000	OUTSIDE
BT1700A-21.5T	Automatic Pin and some Pintle Hooks	Heavy Truck	21500	INSIDE
BT1700A-30T			30000	INSIDE
MULTI COUPLING
Part #:	To suit coupling:	Application	Max ATM (kg):	Chassis Mount
BT620-4.5T	62mm Square Solid Mount with 50mm Ball / Light Pintle Hook / 95mm Barlett Ball	Light/Medium Truck	4500	OUTSIDE
BT750-7T	75mm Square Solid Mount with 50mm Ball / Light Pintle Hook / 95mm Barlett Ball	Light/Medium Truck	7000	OUTSIDE
