Tow bar to suit Pintle Hook Heavy 30000kg Heavy with bolt kit Towbar BT1400H-30T
Make 4 interest-free payments of $727.53 fortnightly and receive your order now.
In StockTowbar to suit Heavy Pintle Hook BT1400H-30T including bolt kit
MODEL: BT1400H-30
DETAILS: Towbar for Pintle Hook to suit Heavy Rigid Trucks to 30,000kg
APPLICATION: Heavy Rigid Truck
COUPLING: Pintle Hook 6 Bolt (PH300)
MAXIMUM ATM: 30000kg standard
UPGRADEABLE: no but 21,000kg is available as standard
CHASSIS MOUNT: outside
INCLUDED: Towbar, mounting instructions, compliance plate once complete. 6 Bolt Pintle Hook sold separately.
INSTALLATION: Drilling and bolting required for truck chassis and sideplates. Welding required for fixing crossmember, gussets and accessory components.

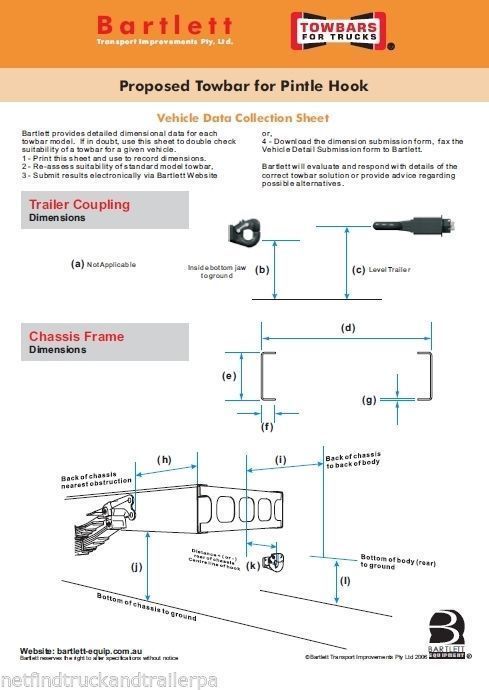

Comprehensive installation Instructions are provided to assist with ADR62 assurance and VSB6 compliance. Some applications require customised sideplates - consult with Bartlett if unsure.
Rapid installation of heavy duty 6 bolt pintle hooks such as Holland® PH300 on most heavy rigid trucks**.
** May not be suitable for some tipper applications. See BT1700 towbars.
Our range consists of the following:
TOW BAR - 50mm Ball & Pintle Hooks |
|
|
||
Part #: |
To suit coupling: |
Application |
Max ATM (kg): |
Chassis Mount |
BT350-3.5T |
50mm Ball |
Light/Medium Truck |
3500 |
OUTSIDE |
BT1250H-7T |
Light Pintle hook + Receiver ball and mount for 50mm ball |
Light/Medium Truck |
7000kg Pintle / 3500kg Ball |
OUTSIDE |
BT1200H-7T |
Light Pintle Hooks |
Small/Medium Truck |
7000 |
OUTSIDE |
BT1300H-15T |
Medium Pintle Hooks |
Medium/Heavy Truck |
15000 |
OUTSIDE |
BT1400H-21.5T |
Heavy Duty Pintle Hook - 6 Bolt (PH300) |
Heavy Rigid Trucks |
21500 |
OUTSIDE |
BT1400H-30T |
|
30000 |
OUTSIDE |
|
TOW BAR - Bartlett Ball |
|
|
|
|
Part #: |
To suit coupling: |
Application |
Max ATM (kg): |
Chassis Mount |
BT1200B-7T |
Bartlett 95 mm Ball |
Medium Truck |
7000 |
OUTSIDE |
BT1300B-13T |
Bartlett 127mm Ball |
Medium/Heavy Truck |
13000 |
OUTSIDE |
BT1400B-21.5T |
Bartlett 127mm Ball |
Heavy Rigid Trucks |
21500 |
OUTSIDE |
BT1400B-30T |
|
30000 |
OUTSIDE |
|
BT1700B-21.5T |
Barttlett 127mm Ball |
Heavy Truck |
21500 |
INSIDE |
BT1700B-30T |
|
30000 |
INSIDE |
|
TOW BAR - Automatic Pin |
|
|
|
|
Part #: |
To suit coupling: |
Application |
Max ATM (kg): |
Chassis Mount |
BT1300A-17T |
Automatic Pin and some Pintle Hooks |
Medium/Heavy Truck |
17000 |
OUTSIDE |
BT1400A-21.5T |
Automatic Pin |
Heavy Rigid Trucks |
21500 |
OUTSIDE |
BT1400A-30T |
|
30000 |
OUTSIDE |
|
BT1700A-21.5T |
Automatic Pin and some Pintle Hooks |
Heavy Truck |
21500 |
INSIDE |
BT1700A-30T |
|
30000 |
INSIDE |
|
MULTI COUPLING |
|
|
|
|
Part #: |
To suit coupling: |
Application |
Max ATM (kg): |
Chassis Mount |
BT620-4.5T |
62mm Square Solid Mount with 50mm Ball / Light Pintle Hook / 95mm Barlett Ball |
Light/Medium Truck |
4500 |
OUTSIDE |
BT750-7T |
75mm Square Solid Mount with 50mm Ball / Light Pintle Hook / 95mm Barlett Ball |
Light/Medium Truck |
7000 |
OUTSIDE |
(NET-BT1400H-30T)
SKU | NET-BT1400H-30T |
Brand | Bartlett |
Shipping Weight | 122.0000kg |
Shipping Width | 0.500m |
Shipping Height | 0.900m |
Shipping Length | 0.500m |
Shipping Cubic | 0.225000000m3 |
Unit Of Measure | ea |
