Tow Hitch suit Bartlett Ball 95mm to 7000kg Towbar including bolt kit BT1200B-7T
More infoMake 4 interest-free payments of $406.12 fortnightly and receive your order now.
In StockTowbar to suit Bartlett Ball 95mm BT1200B-7T Including Bolt Kits
MODEL: BT1200B-7
DETAILS: Towbar for 95mm Bartlett Ball to suit Medium Trucks to 7,000kg
VEHICLE APPLICATION: Medium Truck
COUPLING: 95mm Bartlett Ball only
MAXIMUM ATM: 7,000kg ATM
MAXIMUM SVL: 1,500
D-VALUE: 70kN
CRN: 24609
UPGRADEABLE: no
CHASSIS MOUNT: outside
WEIGHT: 55kg
INCLUDED: Towbar, bolt kit, mounting instructions, compliance plate once complete. 95mm Bartlett Ball sold separately.
INSTALLATION: Drilling and bolting required for truck chassis and sideplates. Welding required for fixing crossmember, gussets and accessory components.
Comprehensive installation Instructions are provided to assist with ADR62 assurance and VSB6 compliance. Some applications require customised sideplates - consult with Bartlett if unsure.
COMPLIANCE: Products are designed, tested, and rated to meet Australian Design Rule 62 (ADR62) and other Australian Standards. Australian compliance may not be transferable to other international jurisdictions. Exporters should carefully check compliance applicability prior to specifying or exporting these products.
RATINGS: Ratings stated are maximum potential ratings and may be limited by many factors. Refer to EQUIPMENT RATINGS CAUTION at the start of each section in this catalogue for further details.

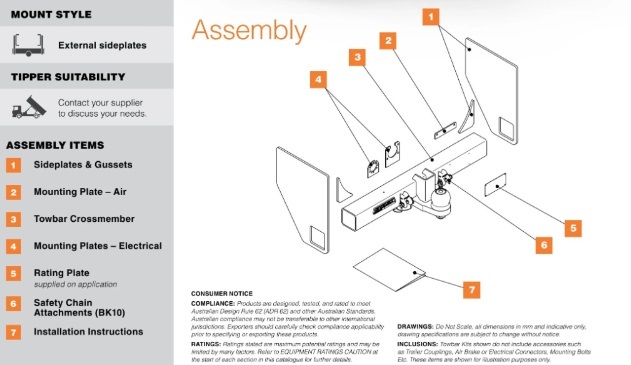

DRAWINGS: Do Not Scale, all dimensions in mmand indicative only, drawing specifications are subject to change without notice.
INCLUSIONS: Towbar Kits shown do not include accessories such Trailer Couplings, Air Brake or Electrical connectors. These are shown for illustration purposes only.
Our range consists of the following:
|
TOW BAR - 50mm Ball & Pintle Hooks |
|
|
||
|
Part #: |
To suit coupling: |
Application |
Max ATM (kg): |
Chassis Mount |
|
BT350-3.5T |
50mm Ball |
Light/Medium Truck |
3500 |
OUTSIDE |
|
BT1250H-7T |
Light Pintle hook + Receiver ball and mount for 50mm ball |
Light/Medium Truck |
7000kg Pintle / 3500kg Ball |
OUTSIDE |
|
BT1200H-7T |
Light Pintle Hooks |
Small/Medium Truck |
7000 |
OUTSIDE |
|
BT1300H-15T |
Medium Pintle Hooks |
Medium/Heavy Truck |
15000 |
OUTSIDE |
|
BT1400H-21.5T |
Heavy Duty Pintle Hook - 6 Bolt (PH300) |
Heavy Rigid Trucks |
21500 |
OUTSIDE |
|
BT1400H-30T |
|
30000 |
OUTSIDE |
|
|
TOW BAR - Bartlett Ball |
|
|
|
|
|
Part #: |
To suit coupling: |
Application |
Max ATM (kg): |
Chassis Mount |
|
BT1200B-7T |
Bartlett 95 mm Ball |
Medium Truck |
7000 |
OUTSIDE |
|
BT1300B-13T |
Bartlett 127mm Ball |
Medium/Heavy Truck |
13000 |
OUTSIDE |
|
BT1400B-21.5T |
Bartlett 127mm Ball |
Heavy Rigid Trucks |
21500 |
OUTSIDE |
|
BT1400B-30T |
|
30000 |
OUTSIDE |
|
|
BT1700B-21.5T |
Barttlett 127mm Ball |
Heavy Truck |
21500 |
INSIDE |
|
BT1700B-30T |
|
30000 |
INSIDE |
|
|
TOW BAR - Automatic Pin |
|
|
|
|
|
Part #: |
To suit coupling: |
Application |
Max ATM (kg): |
Chassis Mount |
|
BT1300A-17T |
Automatic Pin and some Pintle Hooks |
Medium/Heavy Truck |
17000 |
OUTSIDE |
|
BT1400A-21.5T |
Automatic Pin |
Heavy Rigid Trucks |
21500 |
OUTSIDE |
|
BT1400A-30T |
|
30000 |
OUTSIDE |
|
|
BT1700A-21.5T |
Automatic Pin and some Pintle Hooks |
Heavy Truck |
21500 |
INSIDE |
|
BT1700A-30T |
|
30000 |
INSIDE |
|
|
MULTI COUPLING |
|
|
|
|
|
Part #: |
To suit coupling: |
Application |
Max ATM (kg): |
Chassis Mount |
|
BT620-4.5T |
62mm Square Solid Mount with 50mm Ball / Light Pintle Hook / 95mm Barlett Ball |
Light/Medium Truck |
4500 |
OUTSIDE |
|
BT750-7T |
75mm Square Solid Mount with 50mm Ball / Light Pintle Hook / 95mm Barlett Ball |
Light/Medium Truck |
7000 |
OUTSIDE |
(NET-BT1200B-7T)
| SKU | NET-BT1200B-7T |
| Brand | Bartlett |
| Shipping Weight | 56.0000kg |
| Shipping Width | 0.600m |
| Shipping Height | 1.100m |
| Shipping Length | 0.500m |
| Shipping Cubic | 0.330000000m3 |
| Unit Of Measure | ea |
