Towbar to suit Pintle Hook 7000kg Small Medium Truck includes Bolt Kit BT1200H-7T

Towbar to suit Light Pintle Hook BT1200H-7T including Bolt Kit

MODEL:  BT1200H-7

DETAILS:  Towbar for Light Pintle Hook to suit Small/Medium Trucks to 7,000kg

APPLICATION: Small/Medium Trucks

COUPLING:  Pintle Hook

MAXIMUM ATM:  7000kg
MAXIMUM SVL:  1400
D-VALUE: 70kN

CRN: 24617

UPGRADEABLE:  no

CHASSIS MOUNT:  outside

MASS: 55kgs

INCLUDED:  Towbar, bolt kits, mounting instructions, compliance plate once complete.  Pintle Hook sold separately.

INSTALLATION: Drilling and bolting required for truck chassis and side plates. Welding required for fixing crossmember, gussets and accessory components.

Comprehensive installation Instructions are provided to assist with ADR62 assurance and VSB6 compliance. Some applications require customised sideplates - consult with Bartlett if unsure.

 Makes installation straight forward on most Light/Medium rigid trucks

** May not be suitable for some tipper applications.

COMPLIANCE: Products are designed, tested, and rated to meet Australian Design Rule 62 (ADR62) and other Australian Standards. Australian compliance may not be transferable to other international jurisdictions. Exporters should carefully check compliance applicability prior to specifying or exporting these products.

RATINGS: Ratings stated are maximum potential ratings and may be limited by many factors. Refer to EQUIPMENT RATINGS CAUTION at the start of each section in this catalogue for further details.

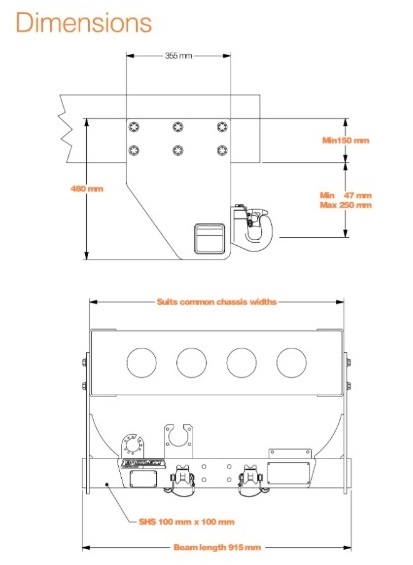

DRAWINGS: Do Not Scale, all dimensions in mmand indicative only, drawing specifications are subject to change without notice.

INCLUSIONS: Towbar Kits shown do not include accessories such Trailer Couplings, Air Brake or Electrical connectors. These are shown for illustration purposes only.

ADDITIONAL EXTRAS:

We can also supply Bartlett Ball, Pintle Hook, Ringfeder and Rockinger tow couplings, as well as electric, hydraulic and air brake trailer couplings.
