Truck Trailer Body Hardware Rear Pivot Kit 2" (50mm) Bush type H PIVK50

Truck Trailer Body Hardware 51mm Rear Pivot Kit - Bush Type

TYPE: 51mm Rear Pivot Kit - Bush Type

APPLICATION: Pivot Kit for Tipper Body and Trays and is used for the replacement of worn bushes and pivot bar on all types of tipping bodies and some trays.

Part Number: H PIVK50

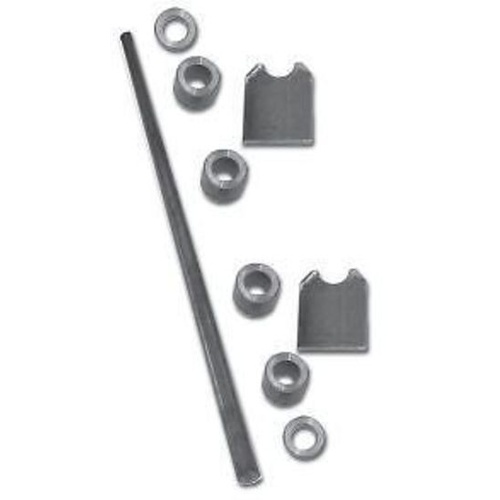

The Kit is made up of the following components:

Ref 1: 4 x Small Bush 1.96" (50mm) I/D x 2" (51mm) long complete with greased nipples

Ref 2: 2 x Large Bush 1.96” I/D (50mm) x 2” (102mm) long complete with greased nipples

Ref 3: 2 x Collers 1.96” I/D (51mm) x 3/8" (10mm)

Ref 4: PLEASE NOTE SUPPORT PLATES ARE NOT INCLUDED IN THIS PACKAGE.

Ref 5: 1 x Solid Bar 1.96” (50mm) x 56” (1400mm) long



FURTHER INFORMATION

Our Body Hardware and Kits have been designed to suit a broad range or truck and trailer applications, including semi-trailers, low loaders, tippers and body truck.

Our range of Body Hardware consists of the following:

· Side Swing Tailgate Kits

· Rear Pivot Kits

· Top Door Hinge & Release Kits

· Double Action Bottom Hinge Kit

. Tailgate Latch & Hinge System

. Drop Side Crowned Hinges

. Drop Side Flat Hinges

. Corner Post Catches

The kits and sizes we have available in our store are:

SIDE SWING TAILGATE KITS

· BOD011A – 27mm Kit

· BOD004A – 35mm Kit

· BOD012 – 50mm Kit

REAR PIVOT KITS

· BOD013 – 27mm Bush Type

· BK005A – 38mm Bush Type

· BK005S – 38mm Shoe Type

· BK005A – 51mm Bush Type

TOP DOOR HINGE & RELEASE KIT

· BOD014-40mm Right Hand Side Handle Kit

DOUBLE ACTION BOTTOM HINGE KIT

· BOD007

TAILGATE LATCH & HINGE SYSTEM

· 02185/02184-20mm Kit

· 02236/02234-24mm Kit

· 02220/02222-30mm Kit

· 02224/02226-40mm Kit

DROP SIDE CROWNED HINGES

· 03312/03306-95mm Hinge and 11mm Pin

· 03327/03328-70mm Hinge and 16mm Pin

· 03330/03328-124mm Hinge and 16mm Pin

DROP SIDE FLAT HINGES

· 03332/03328-140mm Pin and 16mm Pin

· 03339/03328-190mm Pin and 16mm Pin

CORNER POST CATCHES

· 02108DX/02108SX/02112-12mm Catch RH and LH and eye

· 02114DX/02114SX/02120-14mm Catch RH and LH and eye

· 02130DX/02130SX/02128-16mm Catch RH and LH and eye
